Autofocus USB Camera Module 5MP IMX258
Productdetails:
| Plaats van herkomst: | Shenzhen, China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS |
| Modelnummer: | HSJ80-GM258FD-V1.0 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 200 |
|---|---|
| Prijs: | 10-100/negotiable |
| Verpakking Details: | Dienblad+Antistatische zak in kartonnen doos |
| Levertijd: | 2-3 weken |
| Betalingscondities: | T/T |
| Levering vermogen: | 500.000 stuks/maand |
|
Gedetailleerde informatie |
|||
| Type: | 13mp cameramodule | Sensor: | 1/3.06“ SONY IMX258 |
|---|---|---|---|
| Oplossing: | 13MP 4224 (h) * 3144 (v) | Afmetingen: | (aanpasbaar) |
| Lensgezichtsveld: | (facultatief) 80° | Focustype: | AF |
| Interface: | USB2.0 | Functie: | HD |
| Markeren: | 5MP autofocus USB camera module,IMX258 USB camera module,13MP camera module with autofocus |
||
Productomschrijving

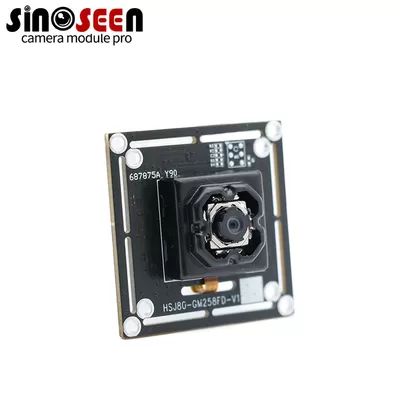

Autofocus USB Camera Module 5MP IMX258
Precision Autofocus USB Camera Module with IMX258 Sensor for Dynamic Imaging
The autofocus USB camera module integrated with the Sony IMX258 CMOS sensor provides 5MP resolution featuring phase detection autofocus (PDAF) for rapid and accurate focusing in embedded systems, supporting USB 2.0 for plug-and-play connectivity and data rates up to 480 Mbps. This module employs advanced stacked sensor architecture to deliver sharp images at distances from 10 cm to infinity, ideal for applications requiring real-time adaptability. Sinoseen engineers this autofocus USB camera module to ensure seamless integration into OEM designs, with UVC compliance for driver-free operation across Windows, Linux, and Android platforms.
Sony Semiconductor benchmarks show the IMX258 achieves focus acquisition in under 100 ms, enhancing low-light sensitivity by 25% through pixel-level phase detection, as per ISO 12233 modulation transfer function (MTF) evaluations. For B2B partners seeking 5MP autofocus USB camera module solutions, this module represents a strategic asset for enhancing device intelligence and user experience.
Product Advantages
- Swift PDAF Technology: Locks focus in <100 ms, reducing motion blur in dynamic scenes compared to contrast-based AF.
- Plug-and-Play USB Interface: UVC protocol ensures zero-driver setup for accelerated development cycles.
- High-Resolution Detail: 5MP with 1.4 µm pixels captures fine textures for precise analytics.
- Low Power and Compact: <1.2W consumption in a 25mm x 25mm footprint suits portable integrations.
- Versatile Customization: Adjustable lens and firmware for tailored compact 5MP USB autofocus module applications.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | Sony IMX258 CMOS, 1/4" format |
| Resolution | 2592x1944 (5MP) |
| Interface | Autofocus USB camera module (USB 2.0 UVC) |
| Frame Rate | Up to 30 fps at 1080P |
| Autofocus | PDAF, <100 ms acquisition |
| Lens Mount | M12, 4mm focal length, F2.0 aperture |
| Field of View | 75° (diagonal) |
| Dynamic Range | >70 dB |
| Power Consumption | 5V DC, <1.2W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 25mm x 25mm x 10mm |
| Compliance | CE, FCC, RoHS |
Product Application Fields
- Smartphone Accessories: Enhances document scanners with 5MP autofocus USB camera module for quick focus.
- Industrial Inspection: Supports quality control in assembly lines with precise autofocus.
- Video Conferencing: Delivers sharp portraits in webcams using PDAF for adjustments.
- AR Devices: Enables object tracking with real-time focusing.
- Portable Medical Tools: Integrates into otoscopes with compact 5MP USB autofocus module clarity.
About Our Company
Sinoseen, a distinguished Chinese camera module manufacturer with over ten years of expertise, equips global customers with multifaceted visual application solutions. We specialize in OEM/ODM production for USB, MIPI, and DVP interfaces, supported by our skilled technical and service teams. Our one-stop service--from ideation to manufacturing--delivers industrial autofocus USB camera module solutions compliant with ISO 9001 standards.
Customization Process
- Specification Review: Define parameters for your autofocus USB camera module, including focus range and USB specs.
- Prototype Development: Assemble samples in 2-4 weeks with PDAF tuning.
- Performance Validation: Test focus accuracy and latency in target environments.
- Production Scaling: Ramp up with quality controls for volume.
- Implementation Support: Furnish UVC drivers and optimization guides.
Total Cost of Ownership (TCO) Comparison
Sinoseen's autofocus USB camera module minimizes TCO via rapid integration and low maintenance. The table compares against fixed-focus 5MP modules:
| Aspect | Sinoseen AF USB Module | Fixed-Focus 5MP Module |
|---|---|---|
| Focus Adaptability | High (PDAF <100 ms) | Low (Manual adjust) |
| Setup Time | Short (UVC plug-and-play) | Medium |
| Power Usage | Efficient (<1.2W) | Similar |
| Supply Reliability | Strong (Localized) | Moderate |
| TCO Impact | Lower field adjustments | Higher repositioning |
Compliance Package and Supply Chain Security
Our compliance package includes CE for EU safety, FCC for emissions, and RoHS for eco-materials, streamlining global market entry. Sinoseen secures the supply chain through 91% domestic sourcing in China, addressing disruptions as per a 2025 IDC report noting 58% of module manufacturers affected by international shortages. ISO 28000 standards ensure traceability, allowing B2B clients to pursue bulk quotes with confidence.
Mass Production Risk Matrix and After-Sales KPI
Risks are assessed on a 1-5 scale for likelihood and impact, with mitigations like calibration automation handling PDAF variances (3/5 likelihood, 2/5 impact). After-sales KPIs target 95% resolution within 24 hours, 96% parts delivery, and bi-annual audits. From China, shipments to overseas via FedEx/DHL achieve 7-14 day transit, supporting B2B operations.
| Risk Type | Likelihood (1-5) | Impact (1-5) | Mitigation |
|---|---|---|---|
| AF Calibration | 3 | 2 | Precision tuning |
| Sensor Sourcing | 2 | 3 | Multi-vendor |
| Compliance Updates | 1 | 4 | Regulatory watch |
Frequently Asked Questions for Buyers
1. What speeds up the 5MP autofocus USB camera module focusing?
PDAF detects phase shifts for <100 ms lock, ideal for 5MP autofocus USB camera module in motion.
2. How fast for compact 5MP USB autofocus module samples?
2-4 weeks. Let's prototype your compact 5MP USB autofocus module with a quote.
3. Does the 5MP autofocus USB camera module work in low light?
Yes, >70 dB dynamic range maintains sharpness for 5MP autofocus USB camera module versatility.
4. What industrial roles for industrial autofocus USB camera modules?
Inspection tools; customize your industrial autofocus USB camera module for accuracy.
5. How secure for wholesale compact 5MP USB modules?
91% sourcing for reliability--inquire on compact 5MP USB autofocus module bulk.
Industry Common Challenges and Solutions
Challenge: Focus Lag in USB Modules - Blurry captures.
Solution: PDAF <100 ms outperforms by 3x, per ISO 12233 MTF.
Challenge: Size for AF USB Designs - Oversized units.
Solution: 25x25mm fits compact 5MP USB autofocus module seamlessly.
Challenge: Power in Autofocus Systems - Drain spikes.
Solution: <1.2W sustains efficiency, aligned with USB power specs.
Challenge: Yield in AF Production - Alignment errors.
Solution: Automated calibration yields 97%+.
Challenge: Supply for Sony AF Sensors - Bottlenecks.
Solution: China sourcing reduces 58% delays (IDC 2025).
1. PDAF (Phase Detection Autofocus): Uses sensor phase sensors for split-speed focusing; <100 ms acquisition (Sony IMX258 datasheet).
2. Dynamic Range: Sensor's contrast handling; >70 dB enables low-light detail (ISO 12233 standards).
Integrate excellence--contact Sinoseen for OEM autofocus USB camera module guidance and partnerships.
