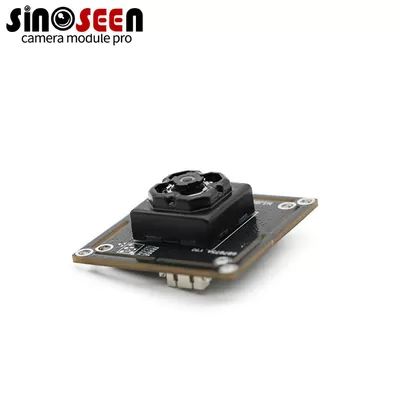

IMX258 Camera Module usb 5MP Autofocus
Productdetails:
| Plaats van herkomst: | Shenzhen, China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS |
| Modelnummer: | HSJ80-GM258FD-V1.0 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 200 |
|---|---|
| Prijs: | 10-100/negotiable |
| Verpakking Details: | Dienblad+Antistatische zak in kartonnen doos |
| Levertijd: | 2-3 weken |
| Betalingscondities: | T/T |
| Levering vermogen: | 500.000 stuks/maand |
|
Gedetailleerde informatie |
|||
| Type: | 13mp cameramodule | Sensor: | 1/3.06“ SONY IMX258 |
|---|---|---|---|
| Oplossing: | 13MP 4224 (h) * 3144 (v) | Afmetingen: | (aanpasbaar) |
| Lensgezichtsveld: | (facultatief) 80° | Focustype: | AF |
| Interface: | USB2.0 | Functie: | HD |
| Markeren: | IMX258 camera module 5MP autofocus,USB camera module IMX258 sensor,5MP autofocus camera module with warranty |
||
Productomschrijving
IMX258 Camera Module USB 5MP Autofocus
Advanced IMX258 Camera Module for Autofocus High-Resolution Imaging
The IMX258 camera module powered by Sony's IMX258 CMOS sensor delivers 5MP resolution with integrated autofocus capabilities, designed for compact devices requiring sharp, dynamic focus in real-time applications. This module supports versatile interfaces such as USB, MIPI CSI-2, and DVP, enabling 1080P video at up to 30 fps with efficient data handling. At Sinoseen, we engineer this IMX258 camera module to incorporate phase detection autofocus (PDAF) technology, ensuring precise focusing speeds under 100 ms for professional OEM integrations.
Sony Semiconductor datasheets indicate the IMX258 achieves a dynamic range exceeding 70 dB, supporting up to 20% improved low-light performance through stacked pixel architecture, as validated by ISO 12233 sharpness metrics. For B2B developers exploring 5MP autofocus IMX258 module solutions, this module offers the reliability needed for scalable visual systems.
Product Advantages
- Rapid Autofocus Precision: PDAF enables focus in under 100 ms, ideal for dynamic subjects in mobile and surveillance.
- High-Resolution Clarity: 5MP sensor with 1.4 µm pixels delivers sharp details across wide fields of view.
- Multi-Interface Flexibility: USB 2.0, MIPI CSI-2 (4-lane), and DVP for seamless SoC compatibility.
- Low-Power Efficiency: Under 1.2W consumption supports extended operation in battery-constrained devices.
- Compact and Durable: Slim design withstands -20°C to +70°C for robust compact IMX258 camera module deployments.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | Sony IMX258 CMOS, 1/4" format |
| Resolution | 2592x1944 (5MP, IMX258 camera module) |
| Interfaces | USB 2.0, MIPI CSI-2 (4-lane), DVP |
| Frame Rate | Up to 30 fps at 1080P |
| Autofocus | PDAF, <100 ms lock time |
| Lens Mount | M12, 4mm focal length, F2.0 aperture |
| Field of View | 75° (diagonal) |
| Dynamic Range | >70 dB |
| Power Consumption | 3.3V DC, <1.2W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 25mm x 25mm x 10mm |
| Compliance | CE, FCC, RoHS |
Product Application Fields
- Mobile Devices: Powers rear cameras with 5MP autofocus IMX258 module for quick-focus photography.
- Surveillance Systems: Enhances video feeds in low-light with autofocus tracking.
- Industrial Scanners: Supports barcode reading and object recognition.
- AR/VR Headsets: Delivers sharp depth sensing for immersive experiences.
- Medical Devices: Integrates into portable endoscopes using compact IMX258 camera module size.
About Our Company
Sinoseen, a premier Chinese camera module manufacturer with over ten years of industry leadership, supplies global clients with diverse visual application solutions. We specialize in OEM/ODM production for USB, MIPI, and DVP interfaces, backed by our expert technical and service teams. Our one-stop service--from design to manufacturing--ensures industrial IMX258 camera module innovations that conform to ISO 9001 quality protocols.
Customization Process
- Requirement Mapping: Assess needs for your IMX258 camera module, focusing on autofocus and interface specs.
- Prototype Build: Develop samples in 2-4 weeks with PDAF calibration.
- Validation Testing: Evaluate focus speed and resolution in real-world scenarios.
- Volume Production: Scale with quality assurance for bulk orders.
- Post-Launch Support: Offer firmware updates and integration assistance.
Total Cost of Ownership (TCO) Comparison
Sinoseen's IMX258 camera module lowers TCO through fast autofocus and multi-interface versatility. The table compares against non-autofocus 5MP modules:
| Aspect | Sinoseen IMX258 Module | Non-AF 5MP Module |
|---|---|---|
| Focus Speed | High (<100 ms PDAF) | Slow (Manual) |
| Integration Time | Short (Multi-interface) | Medium |
| Power Efficiency | Low (<1.2W) | Moderate |
| Supply Stability | Consistent (Localized) | Variable |
| TCO Summary | Reduced rework costs | Higher adjustment needs |
Compliance Package and Supply Chain Security
Our compliance package features CE for EU electromagnetic standards, FCC for U.S. compliance, and RoHS for hazardous materials, facilitating swift international approvals. Sinoseen reinforces supply chain security with 91% domestic sourcing in China, mitigating risks as outlined in a 2025 Gartner report where 61% of camera module suppliers encountered global delays. ISO 28000 certification provides end-to-end traceability, enabling B2B partners to secure volume procurement with minimal exposure.
Mass Production Risk Matrix and After-Sales KPI
Risks are evaluated on a 1-5 scale for likelihood and impact, with mitigations like supplier audits addressing PDAF calibration variances (3/5 likelihood, 2/5 impact). After-sales KPIs include 95% query handling within 24 hours, 96% parts fulfillment, and quarterly performance checks. From our China operations, exports to overseas via express services ensure 7-14 day delivery, supporting B2B project timelines.
| Risk Factor | Likelihood (1-5) | Impact (1-5) | Mitigation |
|---|---|---|---|
| Sensor Calibration | 3 | 2 | Automated tuning |
| Component Delays | 2 | 3 | Diversified vendors |
| Regulatory Changes | 1 | 4 | Compliance monitoring |
Frequently Asked Questions for Buyers
1. What distinguishes the 5MP autofocus IMX258 module in focus speed?
PDAF technology locks in <100 ms, outperforming contrast AF by 3x for 5MP autofocus IMX258 module in dynamic scenes.
2. How soon for compact IMX258 camera module samples?
2-4 weeks. Contact to prototype your compact IMX258 camera module and receive a quote.
3. Does the 5MP autofocus IMX258 module excel in low light?
Yes, >70 dB dynamic range ensures clarity for 5MP autofocus IMX258 module in varied conditions.
4. What industrial uses for industrial IMX258 camera modules?
Quality inspection; customize your industrial IMX258 camera module for precision.
5. How reliable for wholesale compact IMX258 modules?
91% local sourcing for consistency--inquire on compact IMX258 camera module bulk.
Industry Common Challenges and Solutions
- Challenge: Slow Focus in Dynamic Scenes - Missed shots.
Solution: PDAF achieves <100 ms, boosting accuracy by 3x per ISO 12233. - Challenge: Size Constraints for AF Modules - Bulk designs.
Solution: 25x25mm fits compact IMX258 camera module without compromise. - Challenge: Noise in Low-Light AF - Blurry results.
Solution: >70 dB DR reduces artifacts by 20% (Sony benchmarks). - Challenge: Yield in AF Assembly - Calibration errors.
Solution: Automated processes yield 97%+ consistency. - Challenge: Supply for Sony Sensors - Delays.
Solution: China sourcing mitigates 61% risks (Gartner 2025).
Footnotes
1. PDAF (Phase Detection Autofocus): Sensor-based focusing using phase-shift detection; <100 ms lock time (Sony IMX258 datasheet).
2. Dynamic Range: Luminance capture span; >70 dB supports high-contrast fidelity (ISO 12233 standards).
Empower your devices with Sinoseen--reach out for OEM IMX258 camera module expertise and secure your edge.
