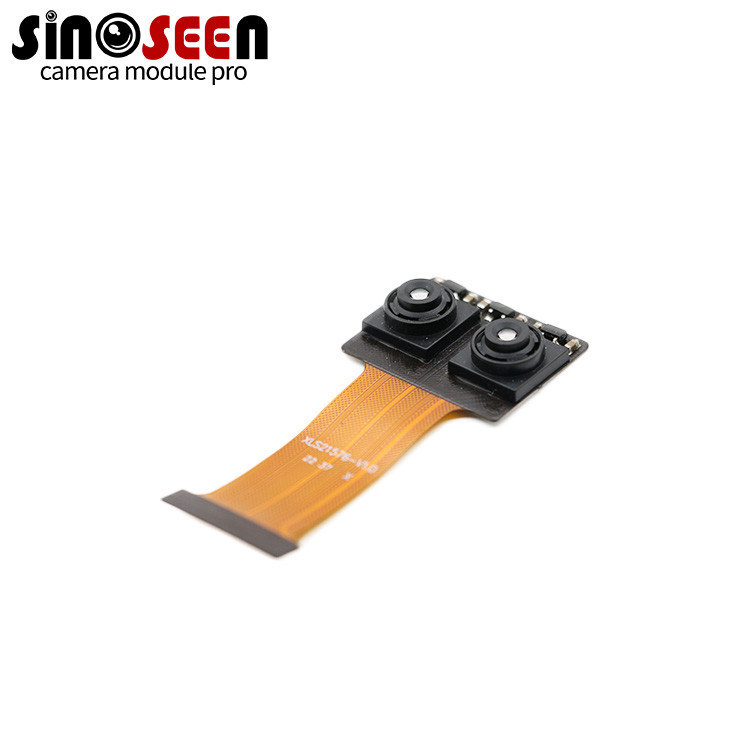

2MP Dual Lens MIPI Camera Module with IR850 and RGB Filters for Color-Accurate and Infrared Imaging
Productdetails:
| Plaats van herkomst: | Shenzhen, China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS |
| Modelnummer: | SNS21576-V1.0 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 3 |
|---|---|
| Prijs: | 10-100USD、negotiable |
| Verpakking Details: | Dienblad+Antistatische zak in kartonnen doos |
| Levertijd: | 2-3 weken |
| Betalingscondities: | T/T |
| Levering vermogen: | 500.000 stuks/maand |
|
Gedetailleerde informatie |
|||
| Type: | 2 MP cameramodule | Sensor: | Sensor SC2310 |
|---|---|---|---|
| Oplossing: | H1920*V1080 | Afmetingen: | (aanpasbaar) |
| Pixelgrootte: | 3.0um x3.0um | Focustype: | Vaste focus |
| Interface: | MIPI | Functie: | HD |
| Markeren: | 2MP dual lens MIPI camera module,dual lens camera module with IR850,MIPI camera module for infrared imaging |
||
Productomschrijving
The 2MP Dual Lens MIPI Camera Module combines two independent lenses, each equipped with a dedicated SC2310 sensor and optical filter. One lens utilizes an IR850 filter to capture infrared light, while the other employs an RGB filter to reproduce natural colors. This dual-filter configuration allows simultaneous imaging in visible and infrared spectrums for enhanced detail and color accuracy.
The IR850 filter detects infrared light invisible to the human eye, making it valuable for night vision, surveillance, and object detection. The RGB filter isolates red, green, and blue channels to ensure precise color balance and true-to-life reproduction. Together, they deliver comprehensive visual data suitable for both daytime color imaging and low-light IR capture.
With a 2MP (1920x1080) resolution and 3.0 μm pixel size, this module provides clear, high-quality output. The MIPI interface ensures fast data transmission and easy integration with embedded systems, SBCs, and AI vision platforms. Its AEC, AEB, and AGC functions ensure consistent image performance across changing lighting environments.
- Dual-lens configuration with separate IR850 and RGB filters
- 2MP SC2310 CMOS sensor delivers 1920*1080 resolution
- IR850 filter enables infrared and night vision imaging
- RGB filter ensures true and vivid color reproduction
- MIPI interface for fast, stable data transmission
| Model No | SNS21576-V1.0 |
|---|---|
| Sensor | SC2310 sensor |
| Pixel | 2 Mega Pixel |
| Most effective pixels | H1920*V1080 |
| Pixel Size | 3.0um x3.0um |
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | TBDdB |
| Dynamic range | TBDdB |
| Sensitivity | 3700 mV/lux-sec |
| Interface type | mipi |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Power supply requirement | AVDD28: 2.7~3.3V(Typ.2.8V) DVDD18: 1.15~1.3V(Typ.1.2V) IOVDD: 1.7~3.0V(Typ.1.8V) |
| Audio frequency | Optional |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | 0~60℃ |
| Operating temperature | -20~80℃ |
