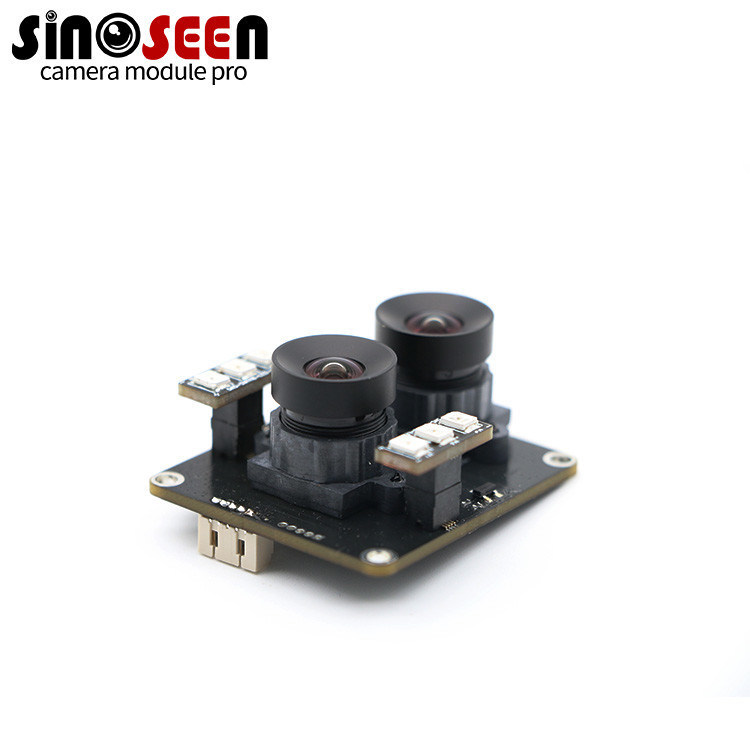

2MP Dual Lens USB Camera Module with Fill Light for Clear Video Conferencing and Live Streaming
Productdetails:
| Plaats van herkomst: | Shenzhen, China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS |
| Modelnummer: | SNS-SM1118-V1.0 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 3 |
|---|---|
| Prijs: | 100 |
| Verpakking Details: | Dienblad+Antistatische zak in kartonnen doos |
| Levertijd: | 2-3 weken |
| Betalingscondities: | T/T |
| Levering vermogen: | 500.000 stuks/maand |
|
Gedetailleerde informatie |
|||
| Type: | 2 MP cameramodule | Sensor: | 1/3'GC2083 CMOS |
|---|---|---|---|
| Oplossing: | H1920*V1080 | Afmetingen: | (aanpasbaar) |
| Pixelgrootte: | 2,7umx2,7um | Focustype: | Vaste focus |
| Interface: | USB | Functie: | HD |
| Markeren: | 2MP dual lens USB camera,USB camera module with fill light,dual lens camera for video conferencing |
||
Productomschrijving
2MP Dual Lens USB Camera Module with Fill Light
Product Description
The 2MP Dual Lens USB Camera Module combines two image sensors, enabling simultaneous or independent image capture for multi-angle or dual-view applications. Each lens operates individually, allowing creative flexibility in video conferencing, live streaming, and AI-based image processing.
A built-in fill light enhances visibility in dark environments, ensuring bright, balanced images even in low illumination. This feature is particularly valuable for streaming setups, conferencing rooms, or smart devices operating under variable lighting conditions.
The USB 2.0 interface ensures stable connectivity and easy integration with PCs, tablets, or embedded platforms. With auto exposure, white balance, and gain control, it consistently delivers sharp, natural images.
Highlights
- Dual-lens system enables multi-perspective image capture
- Integrated fill light enhances low-light performance
- 2MP (1920x1080) GC2083 CMOS sensor for crisp, detailed output
- USB 2.0 plug-and-play interface, compatible with major OS platforms
Specification
| Model No | SNS-SM1118-V1.0 |
|---|---|
| Sensor | 1/3'GC2083 CMOS |
| Pixel | 2 Mega Pixel |
| Most effective pixels | H1920*V1080 |
| Pixel Size | 2.7um x2.7um |
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | TBDdB |
| Dynamic range | TBDdB |
| Sensitivity | 3700 mV/lux-sec |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) DVDD18: 1.15~1.3V(Typ.1.2V) IOVDD: 1.7~3.0V(Typ.1.8V) |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | 0~60℃ |
| Operating temperature | -20~80℃ |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
