• 5MP VB1940 CMOS Camera Module 1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
5MP VB1940 CMOS Camera Module 1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision

5MP VB1940 CMOS Camera Module 1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision

Productdetails:

Plaats van herkomst: CHINA
Merknaam: Sinoseen
Certificering: RoHS
Modelnummer: SNS-GM1133-V1.0

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 5
Prijs: 10-100USD、negotiable
Verpakking Details: Lade+anti-statische tas in doos
Levertijd: 2-3 weken
Betalingscondities: T/t
Levering vermogen: 500000 stuks/maand
Beste prijs Contact

Gedetailleerde informatie

Sensortype: CMO's Modulegrootte: Twee lagen 38mmX38mm
Audio-invoer: MIC-invoer voor kanaal-audio standaardinterface: USB2.0 hoge snelheid
Pixelgrootte: 1.4µm x1.4µm Gecodeerd formaat: H.265/H.264
Stroomverbruik: Ongeveer 140mA Objecten afstand: 6CM200CM
Rijmethode: Rijd vrij F Aantal: 2.2
Bedrijfsstroom: 610mA ((VGA) Max Image Circle: 4,8 mm
Kunstwerk: 8-laag ontwerp Garantie: 10 jaar
VERENIGBAARHEID: Windows, Mac, Linux
Markeren:

5MP USB camera module

,

VB1940 CMOS sensor camera

,

machine vision USB2.0 camera

Productomschrijving

5MP VB1940 CMOS Camera Module
1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
Product Overview

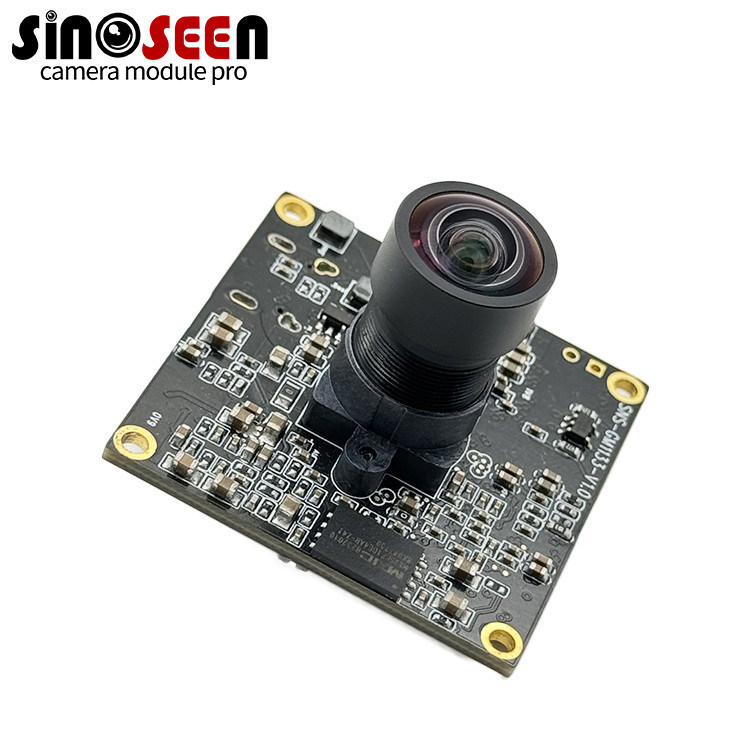

The Sinoseen GM1133 camera module features an advanced 1/2.8" VB1940 CMOS image sensor, delivering sharp 5MP resolution (2592 * 1944) at up to 30 frames per second. With its high-speed USB2.0 interface, this plug-and-play module ensures smooth data transmission up to 480MB/s for seamless integration across various applications.
Key Features
  • 1/2.8" VB1940 CMOS image sensor with 5MP resolution (2592 * 1944)
  • USB2.0 high-speed interface for plug-and-play operation
  • Supports MJPG and YUV video output formats
  • Excellent low-light performance and color accuracy
  • Compact design for easy system integration
  • Compatible with Windows, Linux, Mac, and Android systems
Technical Specifications
Parameter Specification Remarks
Image Sensor Size 1/2.8 inch
Effective Pixels 2592H * 1944V
Pixel Size 2.0 μm * 2.0 μm
Optical Distortion <0.45%
Image Sensor Data Output Raw Bayer 10bits
Video Output MJPG/YUV
Maximum Frame Rates 2592 * 1944 @30 FPS
1920 * 1080 @30 FPS
1600 * 1200 @30 FPS
MJPG
Digital Interface Type-C USB2.0 1.5m cable
Transfer Rates 480MB/s
Power Requirements 5V ±5%
Storage Temperature -20℃ to 70℃
Operating Temperature -10℃ to 60℃
Supported OS Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC compliant)
Lens View M12 * P0.5
Lens Construction 3G2P + 650IR
F/NO Aperture 3.0 ±5%
Effective Focal Length 4.18 mm ±5%
Field of View 82° ±3°
Focus Type Fixed focus
Shooting Distance 60cm - ∞
Applications
Ideal for video conferencing, industrial inspection, surveillance systems, and educational applications. The module's stable performance and customizable image settings make it perfect for developers and engineers requiring high-quality imaging solutions.
