Plaats van herkomst:
CHINA
Merknaam:
Sinoseen
Certificering:
RoHS
Modelnummer:
SNS-DZ1031-V1.0

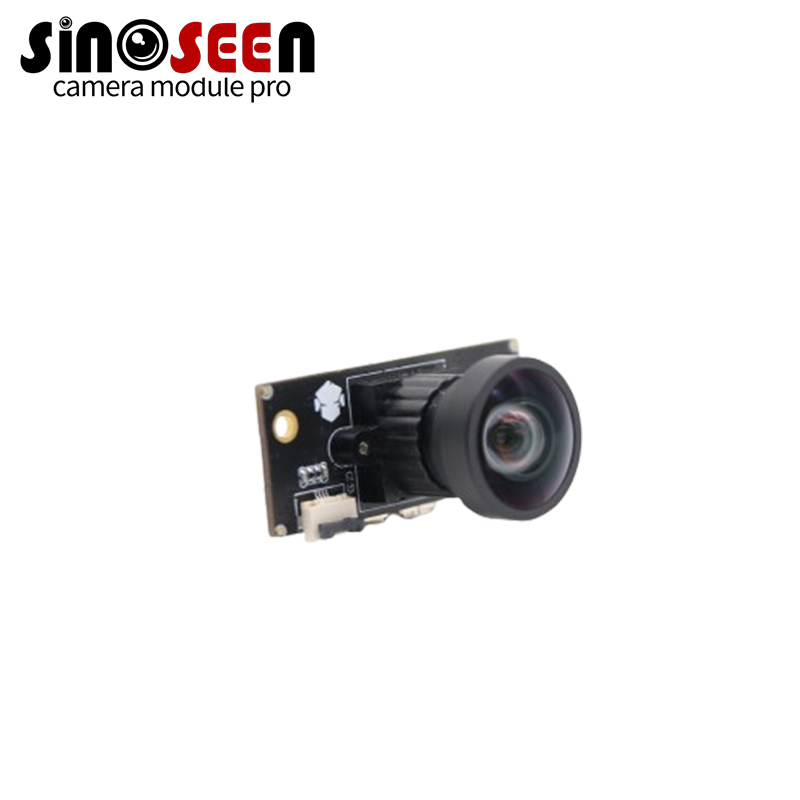

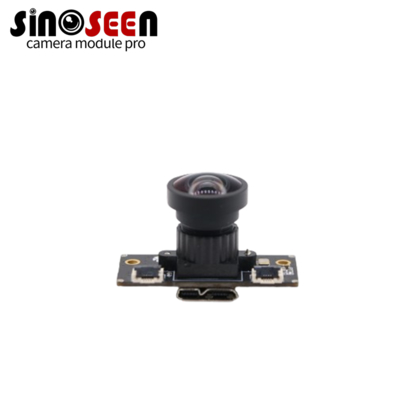

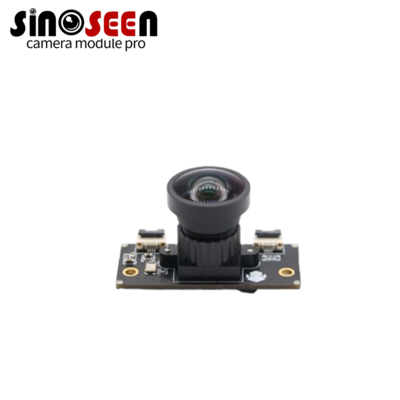

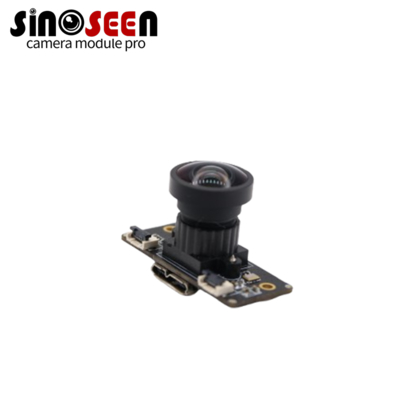

The SNS-DZ1031 camera module provides high-quality 5MP images at 2592 x 1944 resolution. Its 2.0um pixels capture fine details and perform well in normal and low-light environments.
With a USB3.0 interface, data transfer reaches 360MB/s, enabling smooth video at multiple frame rates, including 1080P at 60fps.
The sensor supports both still images (JPG/BMP) and dynamic video capture (AVI/MP4). It’s compatible with Windows, Linux, Mac, Android, and Wince systems, making it a versatile choice for security, video conferencing, and industrial inspection.
5MP resolution 2592 x 1944
Smooth 1080P 60fps video
USB3.0 high-speed interface
Wide application for security and industrial vision
| Item | Specification |
|---|---|
| Model | Signal SNS-DZ1031-V1.0 |
| Image Sensor Size | 1/2.8” inch |
| Effective Pixels | 2592 × 1944 |
| Pixel Size | 2.0 µm × 2.0 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Frame Rates | MJPG: - 2592 × 1944 → 25 FPS - 2560 × 1440 → 25 FPS - 2048 × 1536 → 25 FPS - 1920 × 1080 → 60 FPS - 1600 × 1200 → 25 FPS - 1280 × 1024 → 30 FPS - 1280 × 720 → 30 FPS - 1024 × 768 → 30 FPS - 800 × 600 → 30 FPS - 640 × 480 → 30 FPS YUY2: - 2592 × 1944 → 25 FPS - 2560 × 1440 → 25 FPS - 2048 × 1536 → 25 FPS - 1920 × 1080 → 60 FPS - 1600 × 1200 → 25 FPS - 1280 × 1024 → 60 FPS - 1280 × 720 → 60 FPS - 1024 × 768 → 60 FPS - 800 × 600 → 60 FPS - 640 × 480 → 60 FPS |
| SNR (Max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Optical Distortion | < -4.8% |
| Digital Interface | Micro USB3.0 |
| Transfer Rates | 360 MB/s |
| Power Requirements | 5V ±5% |
| Storage Temperature | -40°C ~ 70°C |
| Operating Temperature | -30°C ~ 60°C |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Lens View (Default Lens) | M12 × P0.5 Lens |
| Lens Construction | 4G2P + 650IR |
| F/NO (Aperture) | 2.2 ±5% |
| Effective Focal Length (EFL) | 2.2 mm ±5% |
| Field of View (FOV) | 120° ±3° |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
