Plaats van herkomst:
CHINA
Merknaam:
Sinoseen
Certificering:
RoHS
Modelnummer:
SNS482088-V1.0

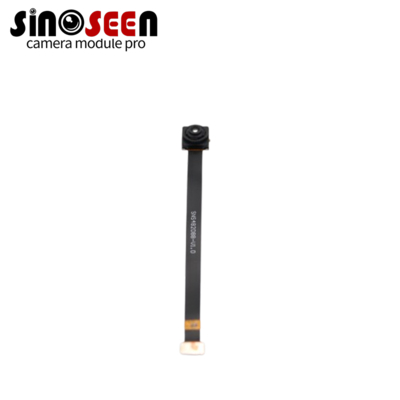

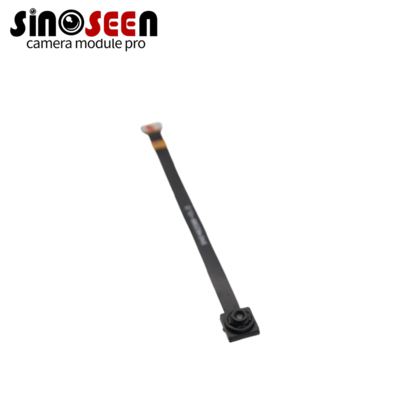

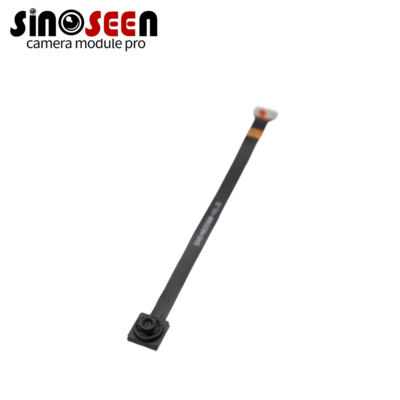

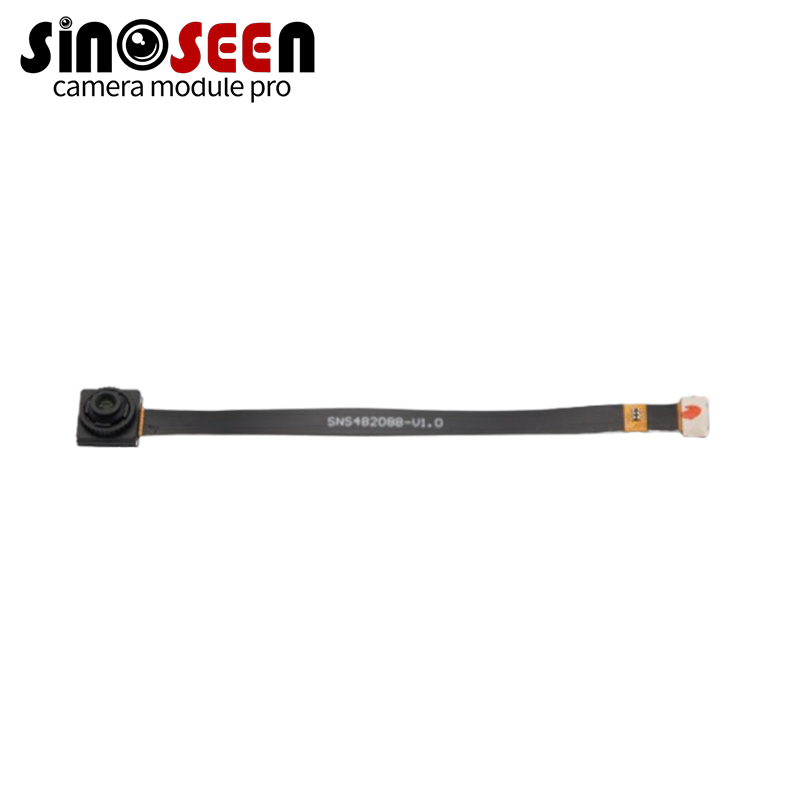

The Sony IMX586 sensor is built for modern mobile imaging. It provides 48MP resolution with 0.8um pixels, giving detailed photos without enlarging device size.
Its back-illuminated structure increases light sensitivity, while advanced noise reduction keeps images clean even in low light. With parallel ADC converters, it captures images quickly and accurately.
The IMX586 is designed for smartphones, tablets, and portable devices, supporting everyday photography, video recording, and advanced camera applications. Its compact form factor makes it ideal for slim device designs.
48MP high resolution sensor
0.8um compact pixel design
Back-illuminated structure for sensitivity
Low noise for clearer images
Perfect for mobile and tablet devices
| Item | Specification |
|---|---|
| Sensor Type | CMOS Image Sensor |
| Diagonal Size | 8.0 mm (Type 1/2.0) |
| Image Size | 8032 (H) × 6248 (V) ≈ 50.18 M pixels |
| Total Number of Pixels | 8032 × 6248 ≈ 50.18 M pixels |
| Number of Effective Pixels | - 8032 × 6088 ≈ 48.89 M pixels - 8000 × 6000 ≈ 48.00 M pixels |
| Number of Active Pixels | 7.504 mm (H) × 5.659 mm (V) |
| Chip Size | 7.504 mm × 5.659 mm |
| Unit Cell Size (Pixel Size) | 0.80 µm × 0.80 µm |
| Substrate Material | Silicon |
