Plaats van herkomst:
CHINA
Merknaam:
Sinoseen
Certificering:
RoHS
Modelnummer:
SNS-DZ1224-02-V1.0

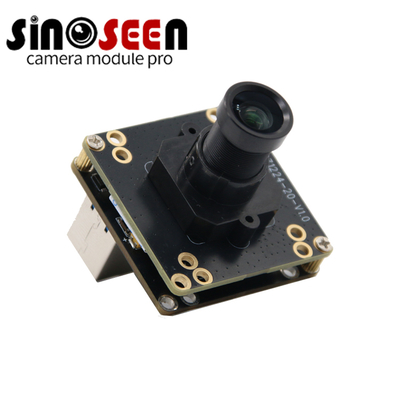

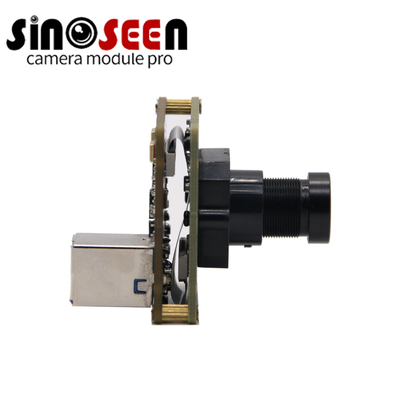

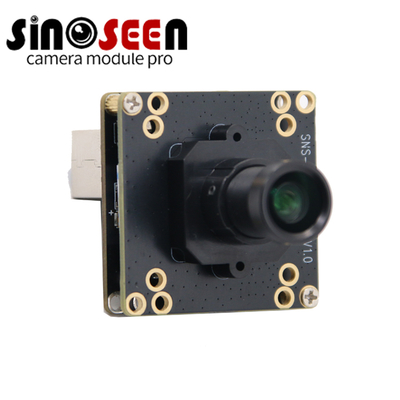

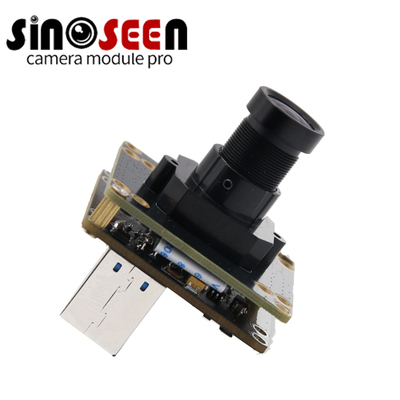

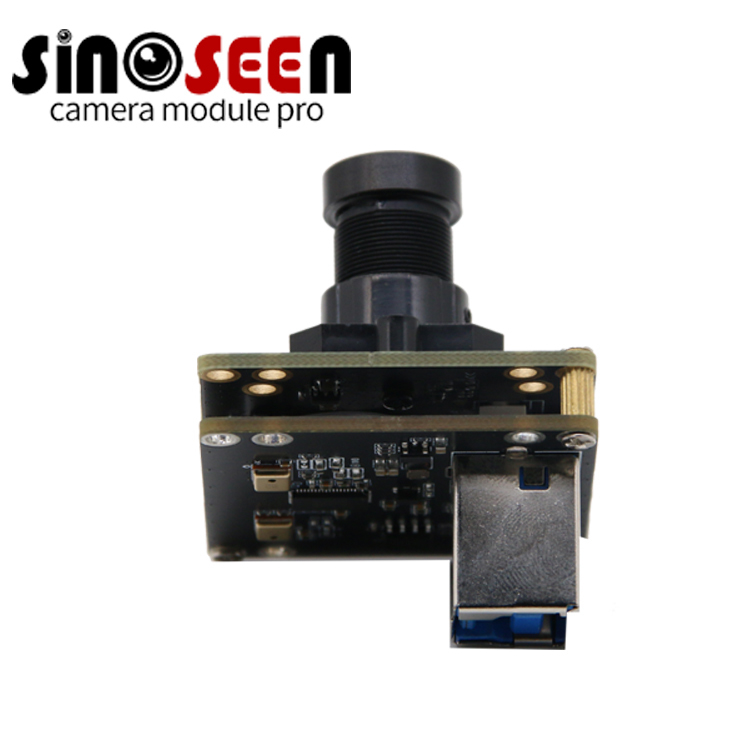

This USB3.0 CMOS camera module is engineered for industrial inspection and machine vision applications. Featuring a 1/2.6 inch sensor, it delivers 1920 × 1080 resolution at up to 120fps, ensuring precise image capture for fast-moving processes.
The USB3.0 interface with 3Gbps bandwidth supports real-time uncompressed video output in MJPG and YUY2 formats, with still image capture in JPG or BMP. Advanced image controls include exposure, brightness, contrast, saturation, and color balance.
The global shutter sensor eliminates motion blur, making it ideal for dynamic industrial environments. This plug-and-play module is compatible with Windows, Linux, Mac, and Android and supports both standard M12 lenses and custom optical solutions.
Applications include automated inspection systems, machine vision, quality control, robotics, surveillance, and access management.
| Model | Signal SNS-DZ1224-02-V1.0 |
|---|---|
| Image Sensor Size | 1/2.6" inch |
| Effective Pixels | 1920 × 1080 |
| Pixel Size | 3.0 µm × 3.0 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Resolution & Frame Rates |
- 1920 × 1200 → MJPG 120 FPS / YUY2 60 FPS - 1920 × 1080 → MJPG 120 FPS / YUY2 60 FPS - 1600 × 1200 → MJPG 120 FPS / YUY2 60 FPS - 1280 × 960 → MJPG 120 FPS / YUY2 120 FPS - 1280 × 720 → MJPG 120 FPS / YUY2 120 FPS - 640 × 480 → MJPG 120 FPS / YUY2 120 FPS |
| SNR (max) | 38 dB |
| Dynamic Range | 71.4 dB |
| Minimum Illumination | TBD |
| Digital Interface | USB3.0 (Type-B) |
| Transfer Rates | 3 Gbps |
| Power Requirements | 5V ± 5% |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Temperature | -30℃ ~ 60℃ |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Effective Focal Length (EFL) | 3.2 mm ±5% |
| F/NO (Aperture) | 2.2 ±5% |
| Field of View (FOV) | D: 92° / H: 82° / V: 57° ±3° |
| Optical Distortion | < -0.1% |
| Lens Construction | 4G2P + IR |
| Lens View (Default Lens) | M12 × P0.5 |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
