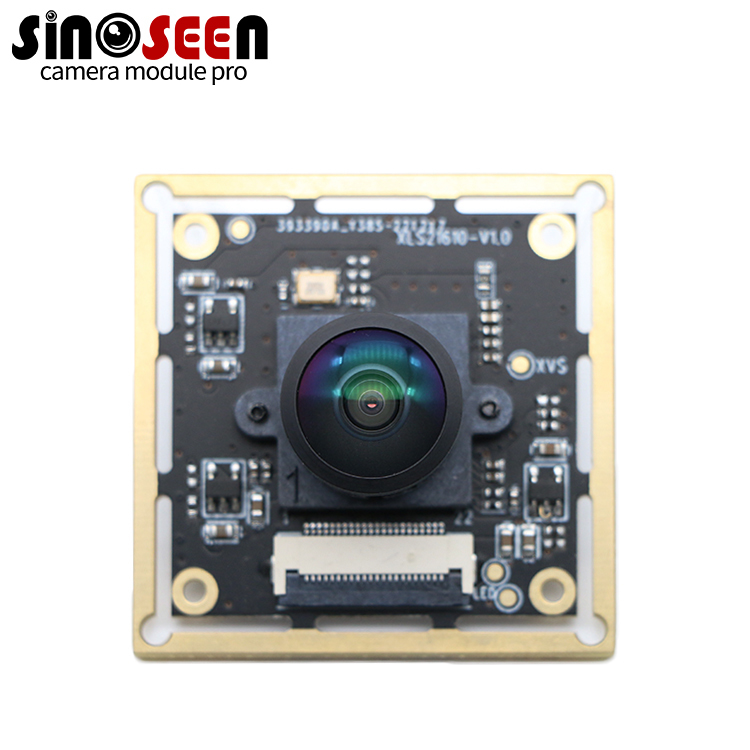

Raspberry Pi Camera Module with SONY IMX290 Sensor 1080P 120FPS
Productdetails:
| Place of Origin: | China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS、ISO9001、CE |
| Model Number: | XLS21610-V1.0 |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | 5 |
|---|---|
| Prijs: | onderhandelbaar |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Gedetailleerde informatie |
|||
| Type:: | Raspberry PI Camera Module | Sensor:: | SNOY IMX290 |
|---|---|---|---|
| Resolution:: | 1920*1080 | Dimensions:: | 38mmx38mm (compatible With 32mmx32mm) |
| Markeren: | Raspberry Pi camera module with IMX290 sensor,1080P Raspberry Pi camera module,120FPS Raspberry Pi camera module |
||
Productomschrijving
| Type: | Raspberry PI Camera Module |
| Sensor: | SNOY IMX290 |
| Resolution: | 1920*1080 |
| Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
Bring clarity and speed to your Raspberry Pi projects.
This high-performance camera module features the SONY IMX290LQR-C CMOS sensor, delivering Full HD (1920x1080) video at an impressive 120 frames per second. Designed for demanding applications like surveillance and machine vision, it ensures smooth, detailed image capture--even in dynamic or low-light conditions.
With 2.4MP effective pixels and high sensitivity RGB color filtering, the module produces vivid, accurate images while maintaining low noise and zero smear. Its low-power architecture uses a triple-voltage supply to optimize energy efficiency without compromising performance.
Thanks to its compact 38mmx38mm PCB (32x32mm compatible) and MIPI interface, this module is easy to integrate into your Raspberry Pi builds, smart systems, or embedded imaging applications.
- 120FPS @ 1080p for ultra-smooth video capture
- SONY IMX290 sensor with excellent low-light performance
- Low power consumption with triple-voltage design
- Supports full scan and pixel merge modes for flexible data output
- Optimized for HDR environments, perfect for surveillance and smart imaging
| Product Name | SONY IMX290LQR-C |
| Sensor Type | CMOS |
| Shutter Type | Rolling Shutter |
| Recording Pixels | 1920(H) x 1080(V) |
| Resolution | 2.07M |
| Optical Format | 1/2.8" |
| Pixel Size | 2.90µm x 2.90µm |
| Chromatic | Color |
| Maximal Frame Rate @Full Resolution | 120fps (10bit) 60fps (12bit) |
| Bit Depth | 10bit 12bit |
| Interface | CMOS Parallel sub LVDS Serial (4, 8 lanes) MIPI CSI-2 (2, 4 lanes) |
Need a specific lens, board layout, or interface? We offer OEM & ODM customization tailored to your application--whether it's for AI projects, robotics, or industry-grade vision systems.
At Sinoseen, we specialize in camera module manufacturing with full OEM/ODM capabilities. Since 2016, we've supported global clients with innovative, reliable, and cost-effective imaging solutions across security, industrial, medical, and consumer tech industries.
