640x512 VOx Thermal Imaging Module with 12μm Detector
Productdetails:
| Place of Origin: | China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS、ISO9001、CE |
| Model Number: | XLS-theraml-640 |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | 5 |
|---|---|
| Prijs: | onderhandelbaar |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Gedetailleerde informatie |
|||
| Markeren: | 640x512 thermal imaging module,VOx thermal detector module,12μm thermal camera module |
||
|---|---|---|---|
Productomschrijving

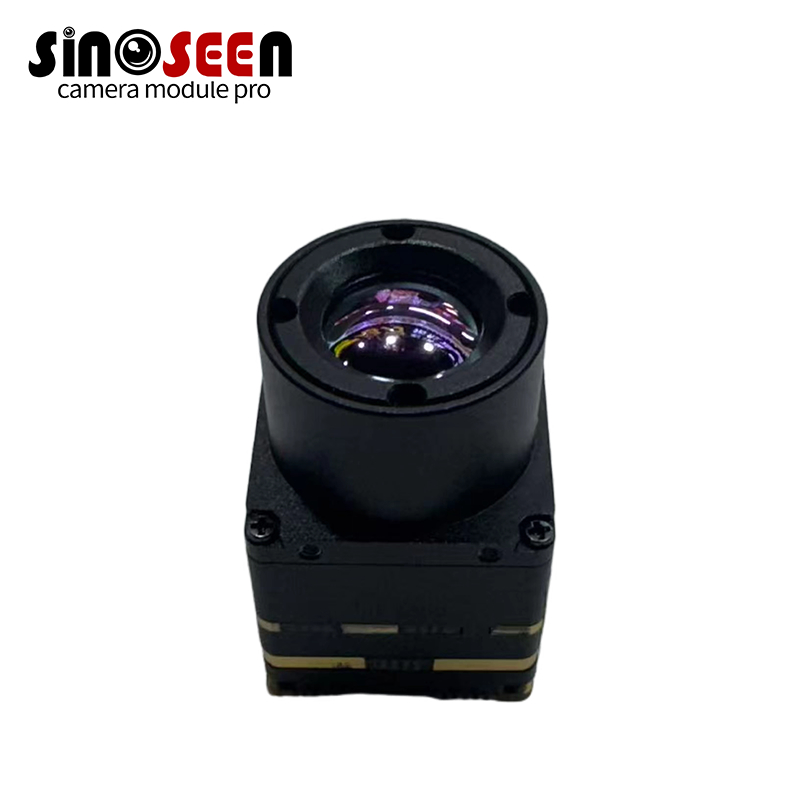

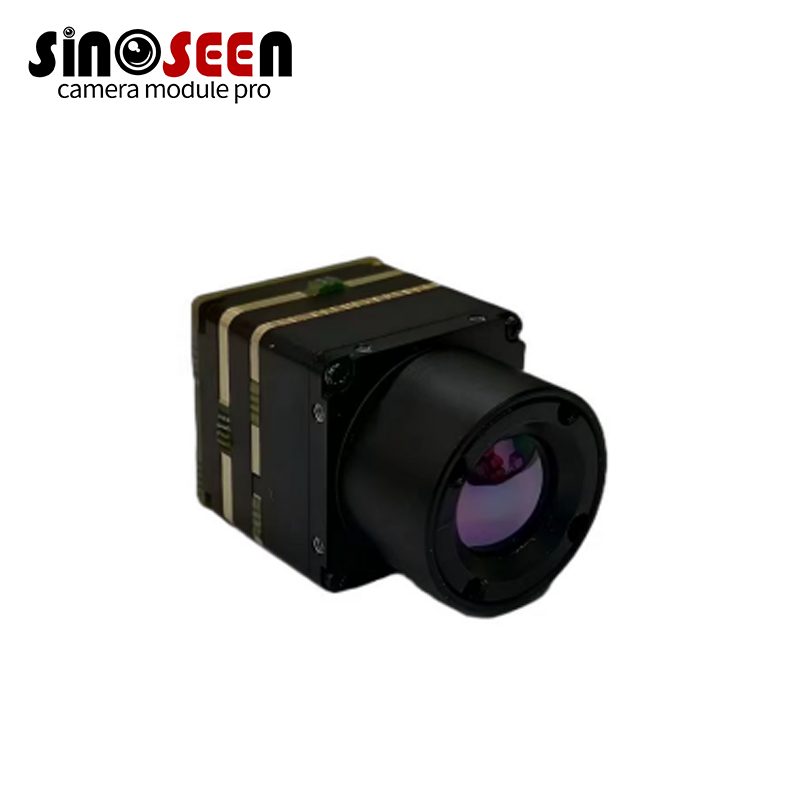

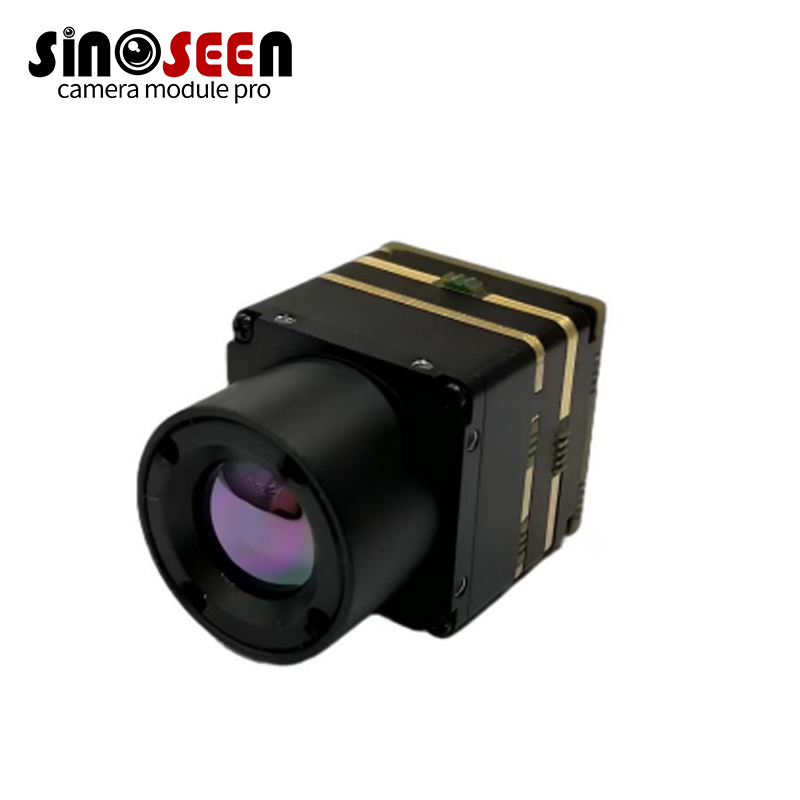

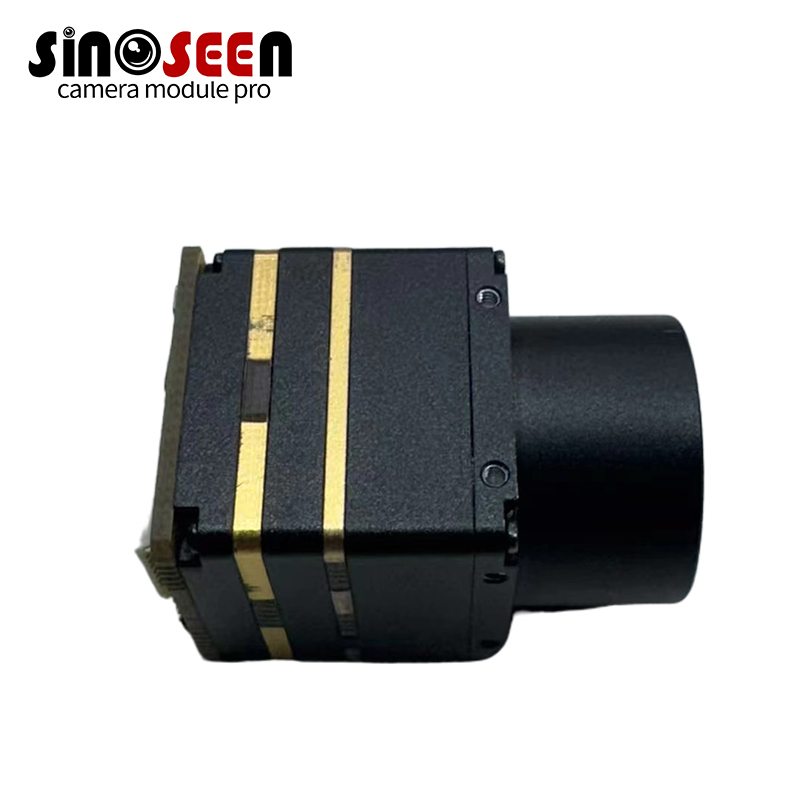

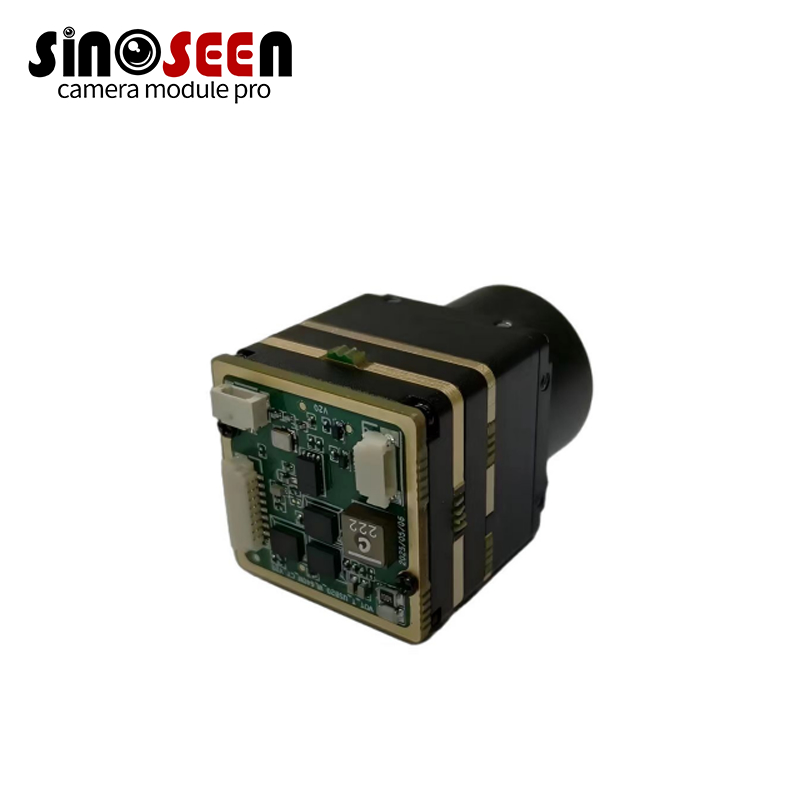

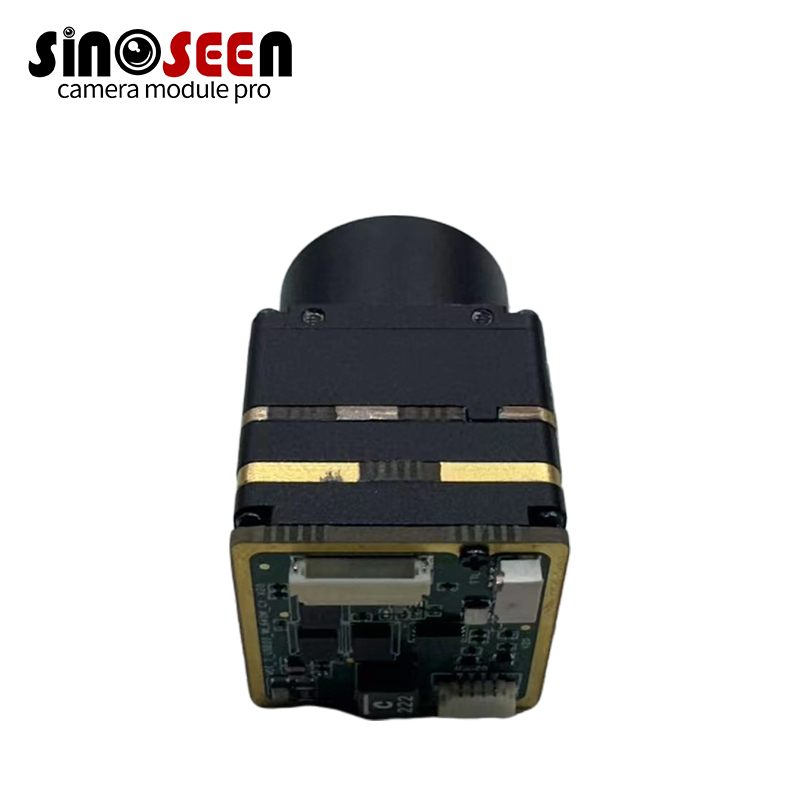

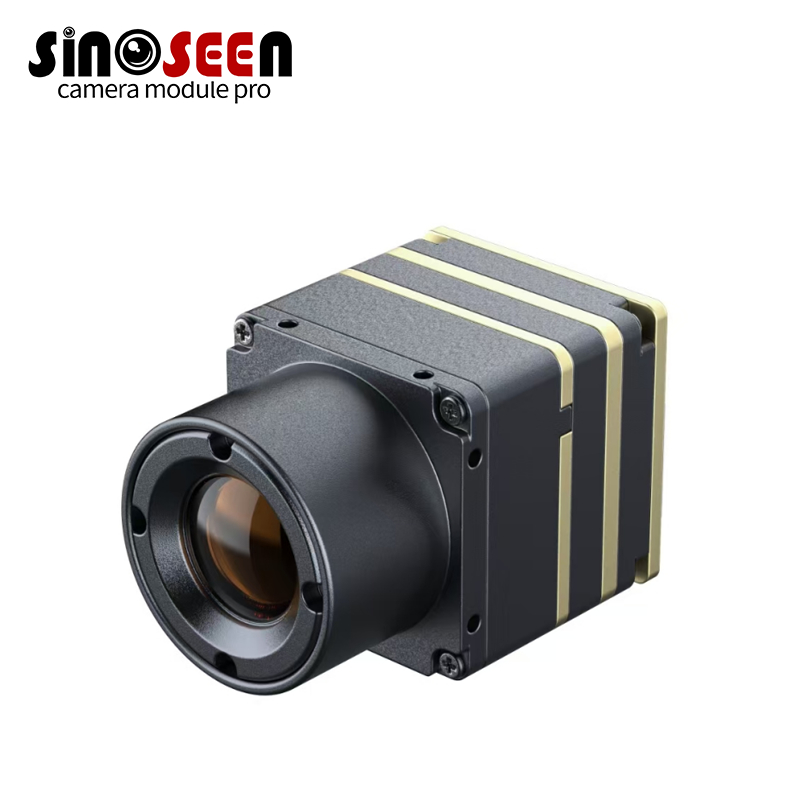

Powerful and Compact 640x512 Thermal Imaging Module with VOx Detector
This high-performance thermal imaging camera module features a 640x512 resolution VOx uncooled infrared detector, delivering crisp and high-definition thermal imaging. Its compact 21x21x33.9mm build and power consumption of just ≤0.85W make it ideal for modern devices like drones, robotics, AI-driven safety systems, and wearable monitoring tools.
Key Features
- Uncooled VOx 12μm detector with NETD ≤40mK
- Full-frame 50Hz output with real-time video over USB
- Smart control via UART/TTL interface
- Digital detail enhancement and multi-mode polarity (White Hot, Black Hot)
- Multiple color palette modes including Rainbow, Iron, and Feather
- Compact dimensions: 21×21×33.9mm (with 9.1mm lens)
- Low power consumption: ≤0.85W
Technical Specifications
| IR Detector | Resolution: 640x512 |
|---|---|
| Spectral Range | 8~14μm |
| Detector Type | VOx |
| Pixel Pitch | 12μm |
| NETD | ≤40mK |
| Lens | 9.1mm |
| Frame Rate | ≤50Hz |
| Power Input | DC5V |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -45℃~+85℃ |
| Weight | 24.5g (with 9.1mm lens) |
Image Processing Capabilities
- Brightness/Contrast adjustment (Auto or manual)
- Polarity modes: White Hot or Black Hot
- Color palettes: Iron, Iron invert, Rainbow, Feather
- Digital zoom: X1, X2, X4
- Image processing: NUC, digital filter noise reduction, digital details enhanced
- Image mirror: Left and right, Up and down
Applications
Ideal for drones, robotics, AI-driven safety systems, wearable monitoring tools, and other applications requiring high-performance, low-SWaP thermal modules.
Customization Services
Modify optics, housing, software, or electrical interfaces to meet your project specifications.
Contact Us
For pricing, integration guidance, or custom solution inquiries:
Email: andy@sinoseen.com
