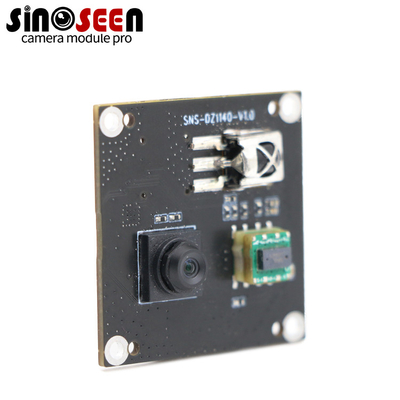

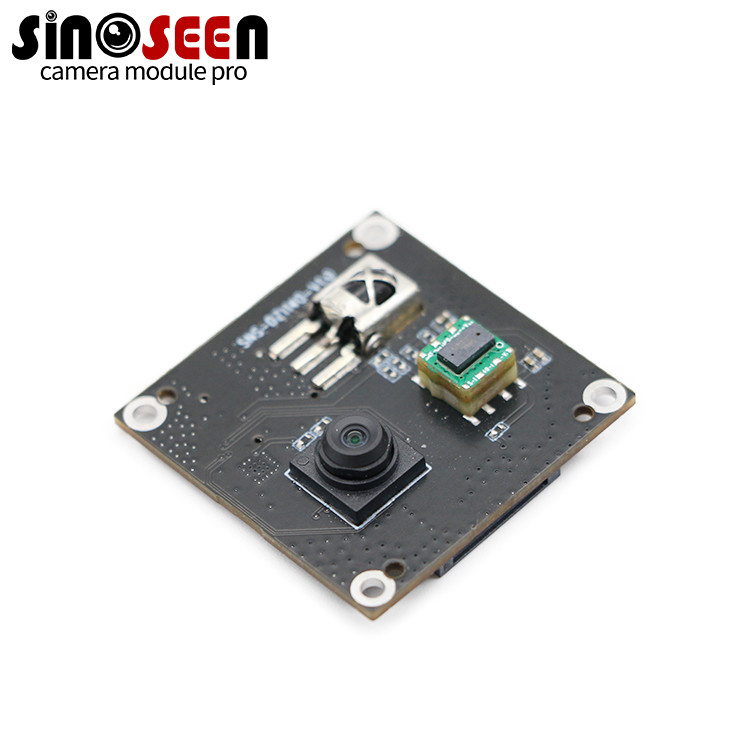

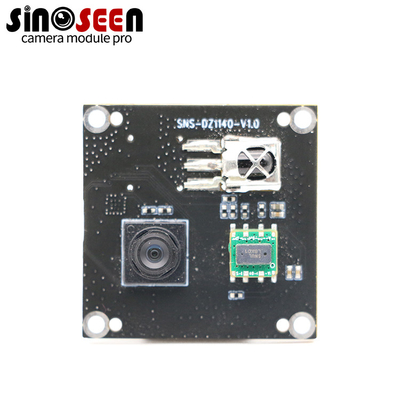

Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Productdetails:
| Plaats van herkomst: | Shenzhen, China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS |
| Modelnummer: | SNS-DZ1140-V1.0 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 3 |
|---|---|
| Prijs: | onderhandelbaar |
| Verpakking Details: | Tray+Anti-statische zak in kartonnen doos |
| Levertijd: | 2-3 weken |
| Betalingscondities: | t/t |
| Levering vermogen: | 500000 stukken/maand |
|
Gedetailleerde informatie |
|||
| Type: | USB cameramodule | Sensor: | BF20A6 1/10 inch |
|---|---|---|---|
| Resolutie: | 30W 640*480 | Afmetingen: | Aanpasbaar |
| Framerate: | 30fps | Lensgezichtsveld: | 51° |
| Interface: | Usb | ||
Productomschrijving
Transform your video conferencing experience with the Sinoseen BF20A6 USB Camera Module. This compact 1/10-inch CMOS sensor module delivers high-quality 640x480 resolution video at 30 frames per second, making it ideal for conference phones and embedded communication systems.
- BF20A6 1/10-inch CMOS sensor for reliable image capture
- 640×480 resolution at 30FPS for smooth video
- Fixed-focus design reduces hardware complexity
- Standard USB interface for easy integration
- Low-light performance for various lighting conditions
- Ultra-low 30W power consumption for energy efficiency
| Attribute | Value |
|---|---|
| Type | USB Camera Module |
| Sensor | BF20A6 1/10 inch |
| Resolution | 30W 640×480 |
| Frame Rate | 30FPS |
| Lens FOV | 51° |
| Interface | USB |
| Module | SNS-DZ1140-V1.0 |
| Sensor | BF20A6 CMOS |
| Image sensor size | 1/10 inch |
| Pixel | 30W |
| Most effective pixels | 640×480 |
| Pixel Size | 2.25um×2.25um |
| Frame rate | 30fps |
| Optical distortion | ≤15.5% |
| Image sensor Data output | RAW Data 10bits |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | YUV |
| Output formats | RAW Bayer 10bits |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |
The Sinoseen SNS-DZ1140-V1.0 Camera Module simplifies product design while enhancing video quality. Its fixed-focus design reduces hardware costs and eliminates complex focusing mechanisms, solving the high cost and integration challenges of traditional solutions.
With broad compatibility across operating systems and energy-efficient operation, this module delivers high-quality video conferencing capabilities with lower costs and simpler integration, boosting your product's market competitiveness.
