Smooth Auto Exposure And Precise Auto White Balance GC2145 CMOS Image Sensor Module For ESP32 And Digital Camera Applications
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Sinoseen |
| Certificering: | RoHS、ISO9001、CE |
| Modelnummer: | XLS28935-V1.1 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 5 |
|---|---|
| Prijs: | onderhandelbaar |
| Verpakking Details: | Tray+Anti-statische zak in kartonnen doos |
| Levertijd: | 2-3week |
| Betalingscondities: | T/T |
| Levering vermogen: | 500000 stukken/maand |
|
Gedetailleerde informatie |
|||
| Type:: | ESP32 cameramodule | Sensor:: | GC2145 |
|---|---|---|---|
| Resolutie:: | 1920*1080 | Afmetingen:: | 38mmx38mm (compatibel met 32mmx32mm) |
| Markeren: | Digital Camera CMOS Camera Module,GC2145 CMOS Camera Module |
||
Productomschrijving

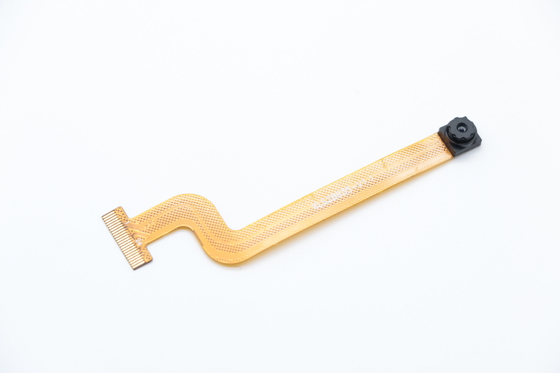

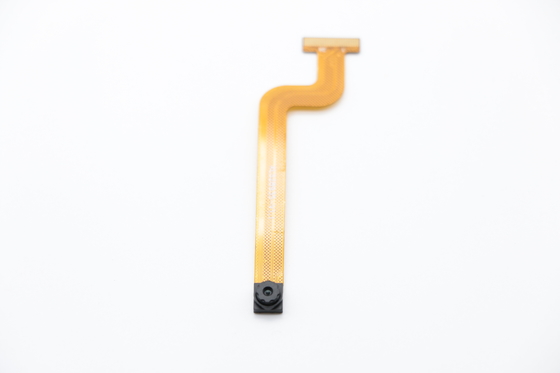

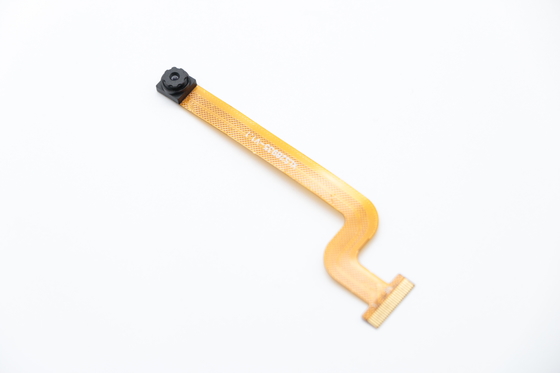

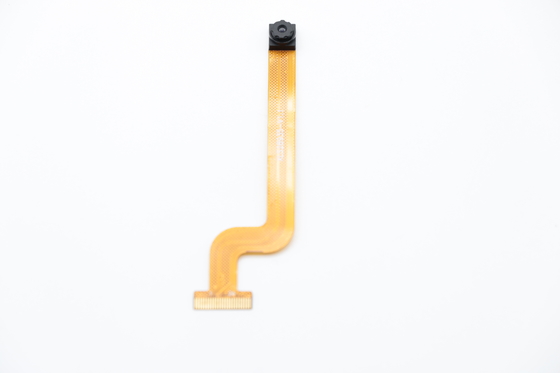

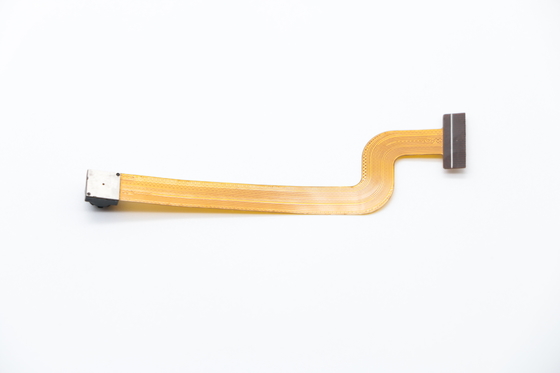

Designed for ESP32 camera modules and other digital camera applications, the GC2145 CMOS image sensor module provides 2 megapixel (1920x1080) HD image output. It integrates a 1616x1232 effective pixel array, an on-chip 10-bit ADC, and a powerful image signal processor (ISP) to achieve excellent image quality.
The GC2145 module's ISP provides smooth auto exposure (AE) and precise auto white balance (AWB) control, making it flexible to adapt to various lighting environments. To further enhance the image effect, it also supports interpolation, noise reduction, color correction, and gamma correction. The sensor supports multiple data formats, including Bayer RGB, RGB565, and YCbCr 4:2:2, and can be controlled via a standard 2-wire serial interface. The module size is 38mmx38mm, compatible with a 32mmx32mm mounting size, making it ideal for mobile phone cameras and various digital camera products. With its high-definition performance and built-in image optimization, the GC2145 module is a solid choice for your ESP32 project.
Product Highlights
- 2MP HD resolution: Provides 1920x1080 pixel images with rich details.
- Built-in ISP image processing: Supports AE, AWB, interpolation, noise reduction, color correction and gamma correction.
- Multi-data format output: Compatible with Bayer RGB, RGB565, YCbCr 4:2:2.
- Flexible control: Full control through a 2-wire serial interface.
- ESP32 compatible and widely used: Suitable for ESP32 projects, mobile phone cameras and digital cameras.
