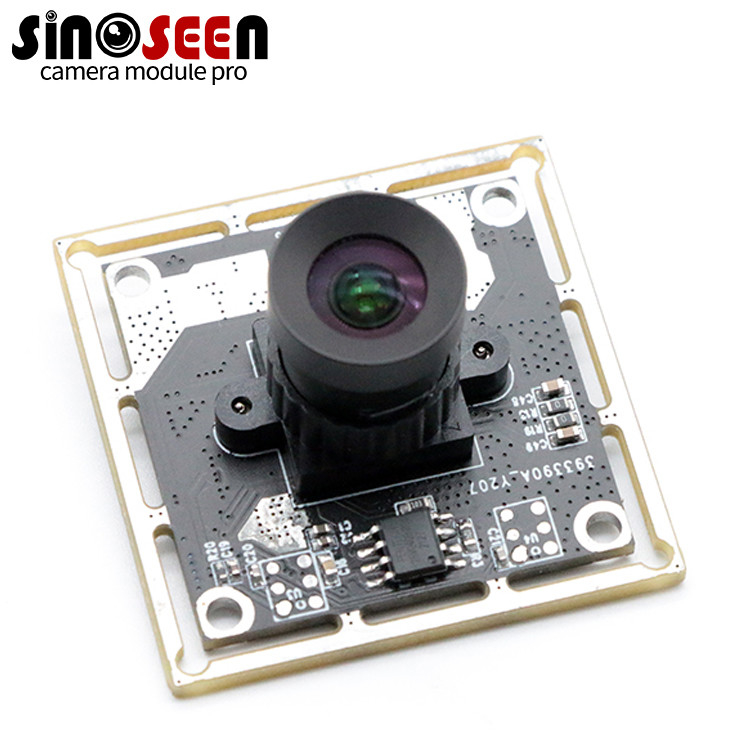

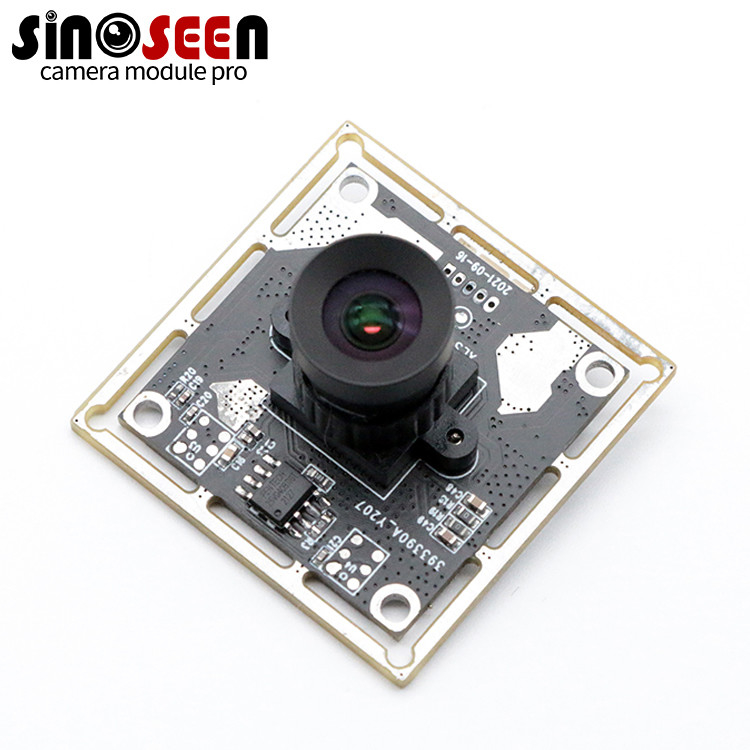

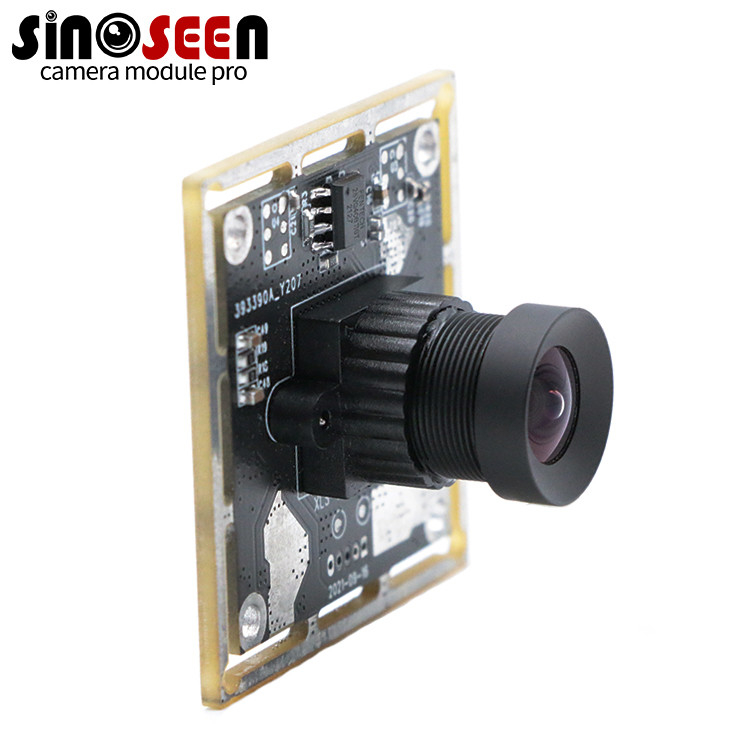

Vaste focus 5MP FF USB-cameramodule met PS5520-sensor

Vaste focus 5MP FF USB-cameramodule met PS5520-sensor

Productdetails:

Plaats van herkomst: Shenzhen, China
Merknaam: Sinoseen
Certificering: RoHS
Modelnummer: Sns-gm980-V1.0

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: negotiable
Verpakking Details: Tray+Anti-statisch zak in kartondoos
Levertijd: 2-3weeks
Betalingscondities: T/T
Levering vermogen: 500000 stukken/maand
Beste prijs Contact

Gedetailleerde informatie

Type: 5mp cameramodule Sensor: 1/2.5 PS5520
Resolutie: HD 2592 (H) X1944 (V) Afmetingen: (klantgericht)
Pixelgrootte: 2.20um (h) x 2.20um (v) Nadruktype: Vaste Nadruk
Interface: USB2.0 Eigenschap: HD
Hoog licht:

FF USB-cameramodule

,

PS5520-sensor USB-cameramodule

,

PS5520-sensor 5MP-cameramodule

Productomschrijving

5MP de Cameramodule van FF USB met PS5520-Sensor voor de Camera van Toezichttv



5MP USB-Cameramodule voor de Camera van Toezichttv

Dit is de heetste 5MP-cameramodule die wij hebben verkocht. Het gebruikt een fisheyelens en kenmerkt een PS5520-sensor, een hoogst geïntegreerde CMOS beeldsensor dat output2592x1944 (5MP) pixel en heeft een rolling shutterlezen.
De cameramodule heeft openlucht anti-glare en anti-anti-backlightfuncties, en kan voor de controle van camera's hd-kabeltelevisie, de camera's van het toezichtnetwerk, 360 panoramische camera's, sportendv camera's, voertuig videorecorders, videowalkie-talkies, enz. worden gebruikt.


Specificatie
ModelNo Sns-gm980-V1.0
Sensor 1/2.5 PS5520
Pixel 5 megapixel
De meeste efficiënte pixel 2592 (h) x 1944 (v)
Pixelgrootte 2.20um (h) x 2.20um (v)
Beeldgebied 3673.6μm x 2738.4μm
Compressieformaat YUYV/MJPEG
Resolutie & Framesnelheid Zie hierboven
Blindtype Elektronische rolling shutter
Nadruktype Vaste nadruk
Objecten afstand 5CM-oneindigheid
S/N verhouding 39dB
Dynamisch bereik 85dB
Gevoeligheid 600mV/Lux-seconde
Interfacetype USB2.0 hoge snelheid
Regelbare parameter Helderheid/Contrast/Kleurenverzadiging/Tint
Definitie/Witbalans/Blootstelling
Voeding USB-BUSmacht
Machtsconsumptie Gelijkstroom 5V, 150mA
Hoofdspaander DSP/SENSOR/FLASH
Autoblootstellingscontrole Steun
Autowitbalans Steun
Autoaanwinstencontrole Steun
Werkende temperatuur -30 oC ~75 oC
Steun OS WinXP/Uitzicht/Win7/Win8/Win10
Linux met UVC (boven Linux-2.6.26)
MacOs X 10.4.8 of later
Android 4,0 of hierboven met UVC

Vaste focus 5MP FF USB-cameramodule met PS5520-sensor 0Vaste focus 5MP FF USB-cameramodule met PS5520-sensor 1



De Technologieco. van Shenzhensinoseen, Ltd

De fabrikant van de de cameramodule van China top 10

Wij passen allerlei USB/MIPI/DVP-cameramodule vanaf aan uw verzoek





Huidige beschikbare USB-oplossing



0.3MP

Lage kosten: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Grote grootte: GC0308 (1/6.5“) GC0328 (1/6.5“) GC0403 (1/3“ - 0.4MP) BF3A03 (1/6.5“)

Globaal blind: OV7251 (1/7.5“, B/W)

Hoge framesnelheid: 200FPS SC031GS (1/6“, B/W)

Grote grootte met hoge framesnelheid: OV7725 (1/4“, 60FPS), OV7740 (1/5“, 60FPS)



1MP

Lage kosten: GC1024 GC1034 GC1064 (H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Kleine grootte voor endoscoop: OV9734 GC1009 HM1091

Globaal blind: OV9281 (1/4“, B/W) OV9782 (1/4“, kleur) AR0144 (1/4“, kleur) AR0135 (1/3“, kleur)

Grote grootte (30FPS): AR0130 (1/3“, B/W) OV10635 (1/2.7“, kleur, WDR, 960P) H65 (1/3“, kleur, 960P)



2MP

Normaal (10FPS): GC2145 (1/5“) BF2206 (1/5“) GC2335 OV2643 HM2056 BF3925 OV2755 (1/5“ HD)

1080P lage kosten: F23 F37 F35 SP2305 GC2053 GC2023 AR0330 (300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P kleine grootte (30FPS): OV2732 (1/4“) OV2740 (1/4“) OV2722 (1/6“) SC2145 (1/4“) HM2160 (1/6“)

1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331 (300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P grote grootte: IMX385

1080P globaal blind: OG02B10 (KLEUR) OG02B1B (B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693 (TOT 30FPS) 4EC OV5650

FHD 500W (30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689 (2K, 1/3“)



8MP

800W (15FPS): IMX219 (1/4“) S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10 (grote grootte 1/1.8“)



13MP-16MP

IMX214 (13M) IMX258 (13M) IMMX298 (16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
